SOLUTIONS
InnoWaCon LLC offers the following Energy Storage solutions:
EES (Electrostatic Energy Storage)
From low kWhr. Units for residential and light industrial, to
Multi MWhr units on skids or in containers for Industrial, Commercial and Utility uses.

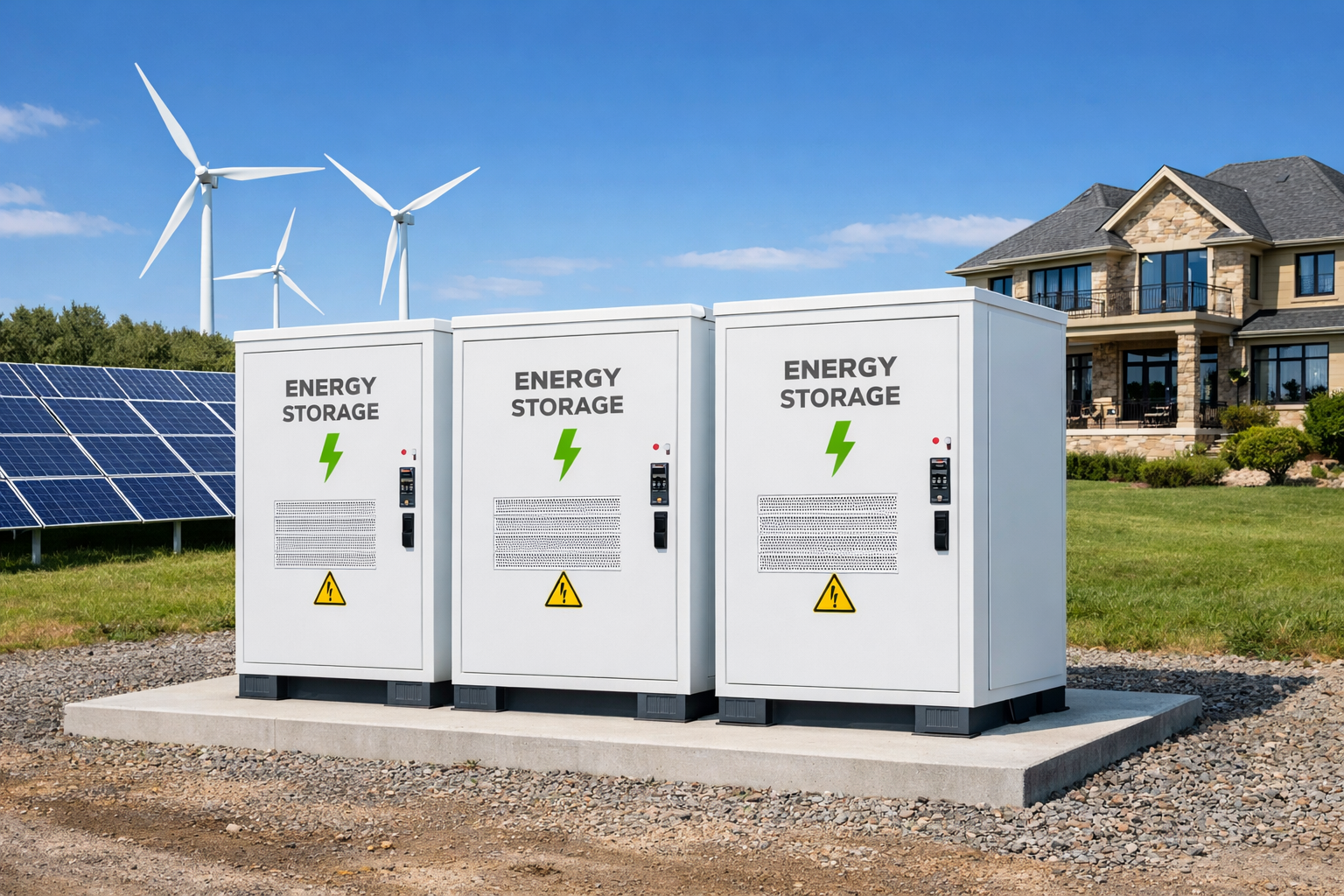

Powering your home as a back-up or making it off-grid to increasing it’s NOI is all in with our EES

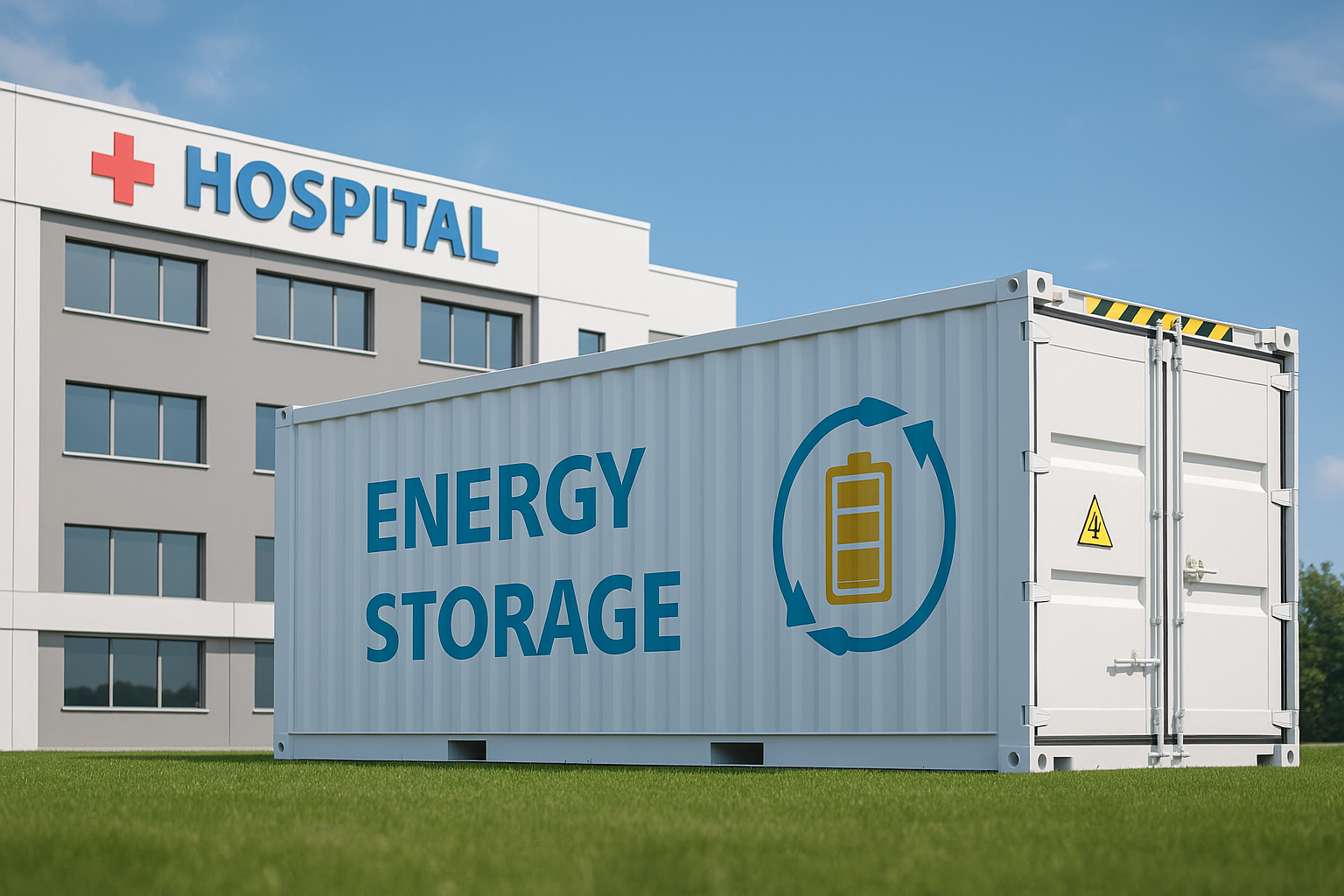

Grid-Stabilization, Data-Center back up and peak-shaving while hooked to wind or solar power rounds out the higher power applications.
Here a little bit about the tech used and its fantastic features:
Technology: EES (Electrostatic Energy Storage)
Medium: Graphene (no Li-Ion, electrolytes, no chemicals of any sort)
Energy Density: 460 Whr/kg
Environmental. 100% Recyclable, 80% Biodegradable
Life-Cycles: 500,000+
Cycles / day: 4 possible
Thermal: No thermal run-away
DoD: Depth of Discharge 100% with negligible degradation
RTE: Round Trip Efficiency 99.1%
Response times: Nanoseconds
Operating
Temperature
Range: -30°C (-22°F) to 60°C (140°F) without any HVAC needed.
Charging: Simultaneous charging/discharging possible
Charging rates: 1, 2 & 4C as specified
Cost / kWhr: CAPEX: around USD500
Cost: OPEX: Very low. See comments below.
Product range: Individual modules at 8 kWhr,

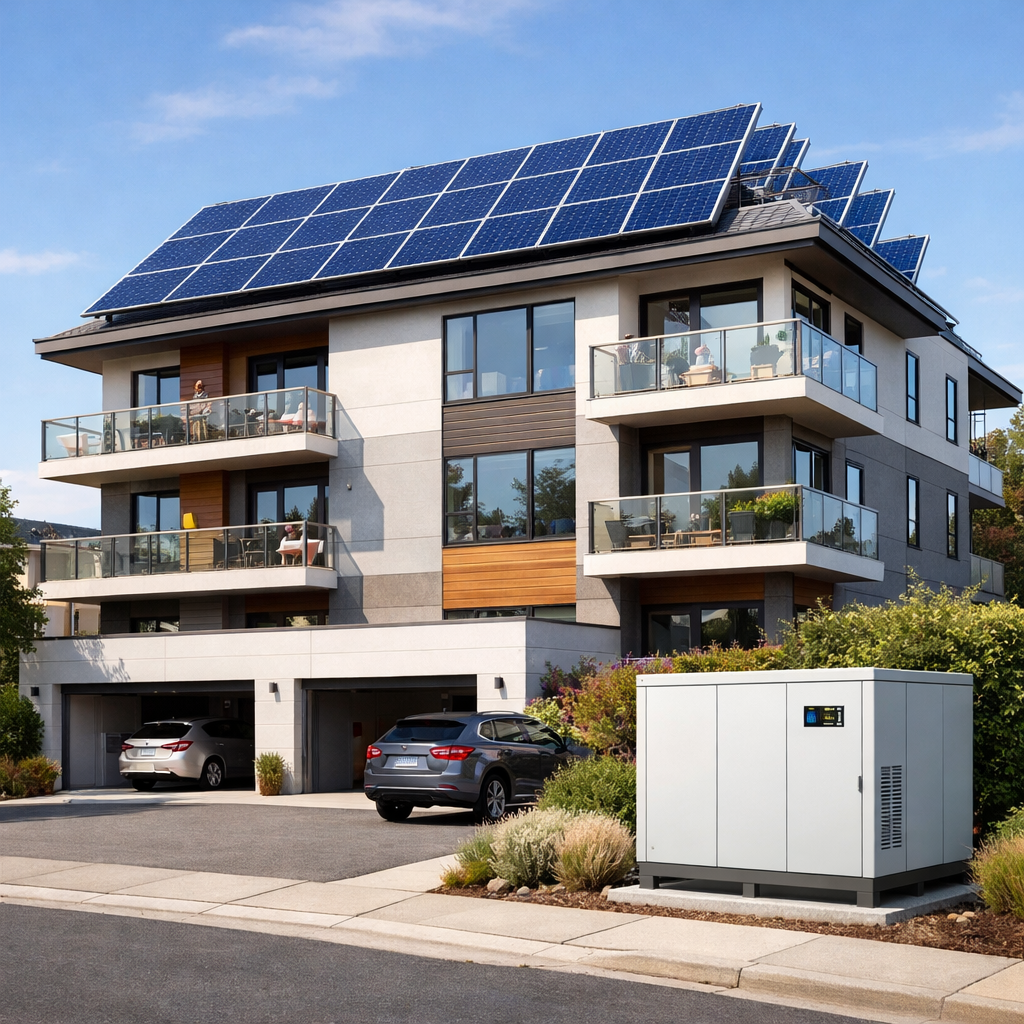

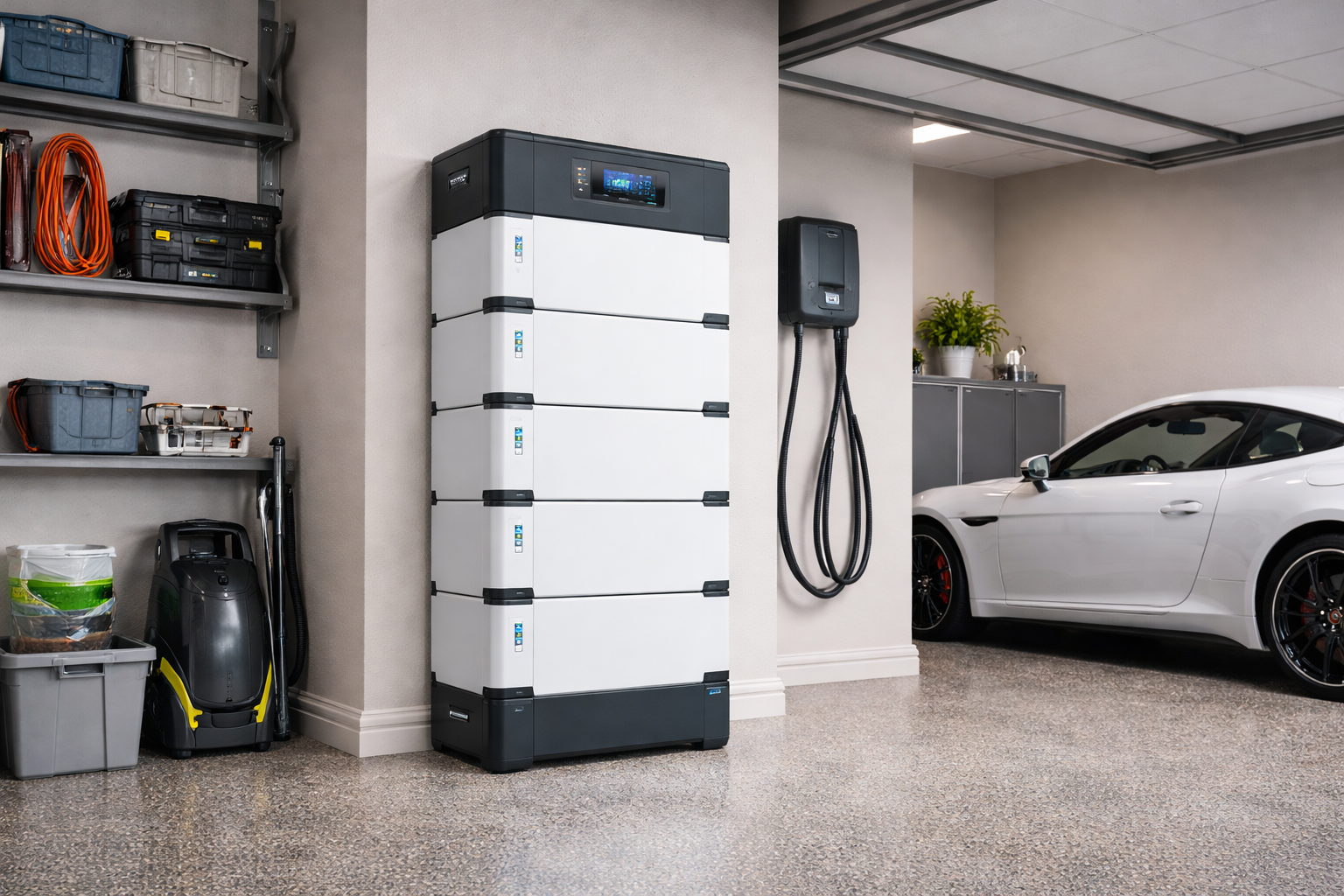

Residential units mostly with 8, 16, 24, 32, 40, 48 kWhr,

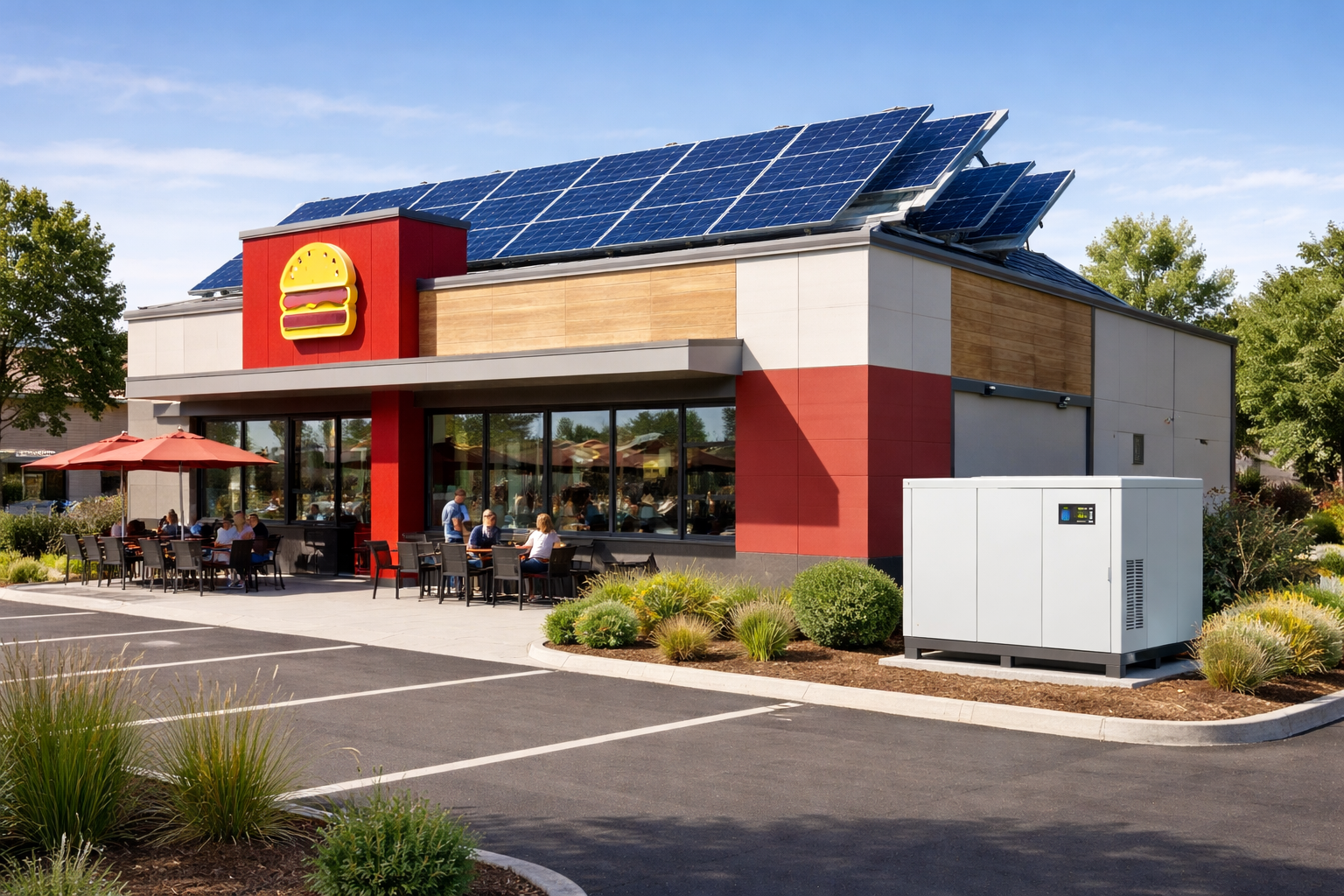

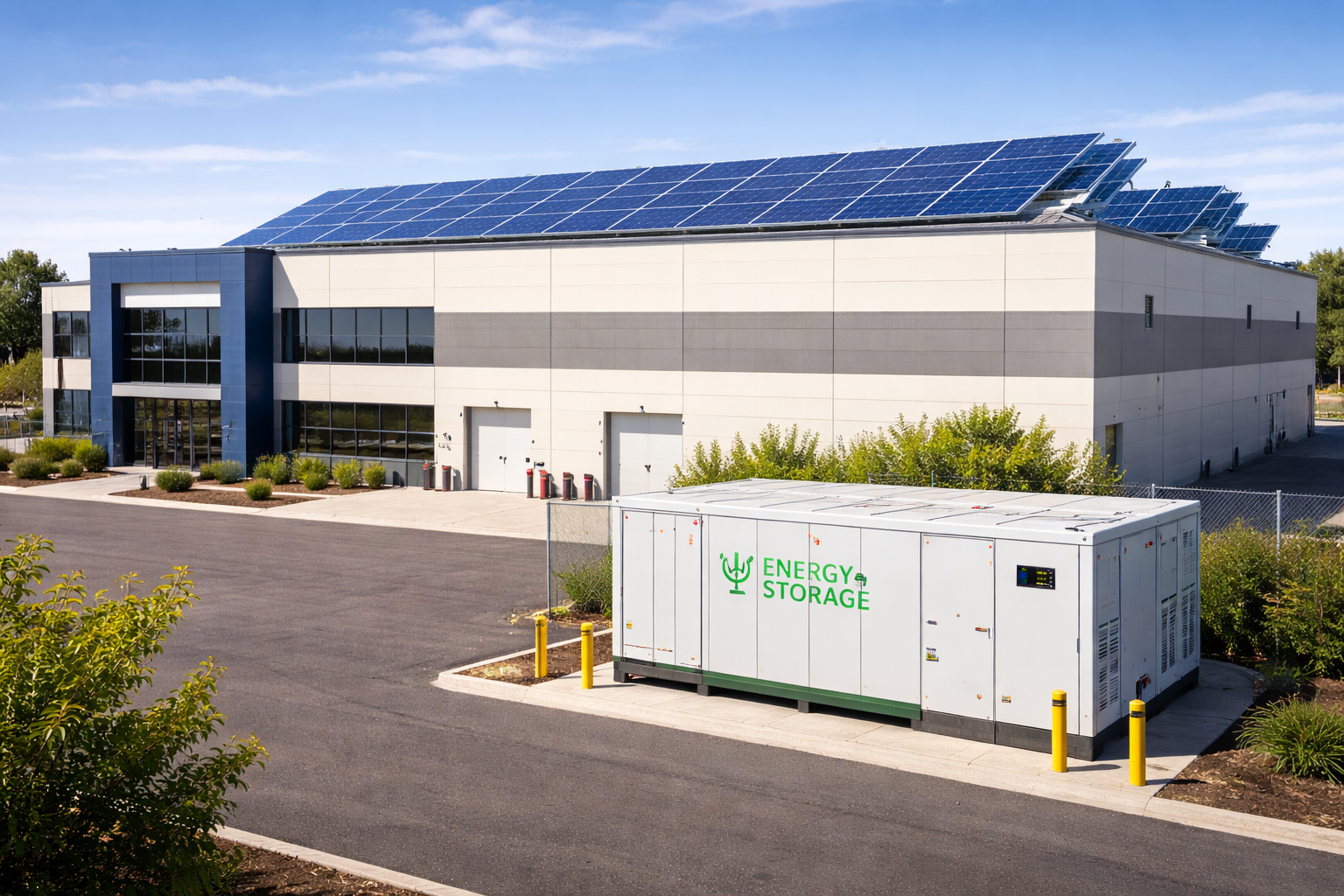

Commercial units with 200kWhr, 400kWhr, and higher,

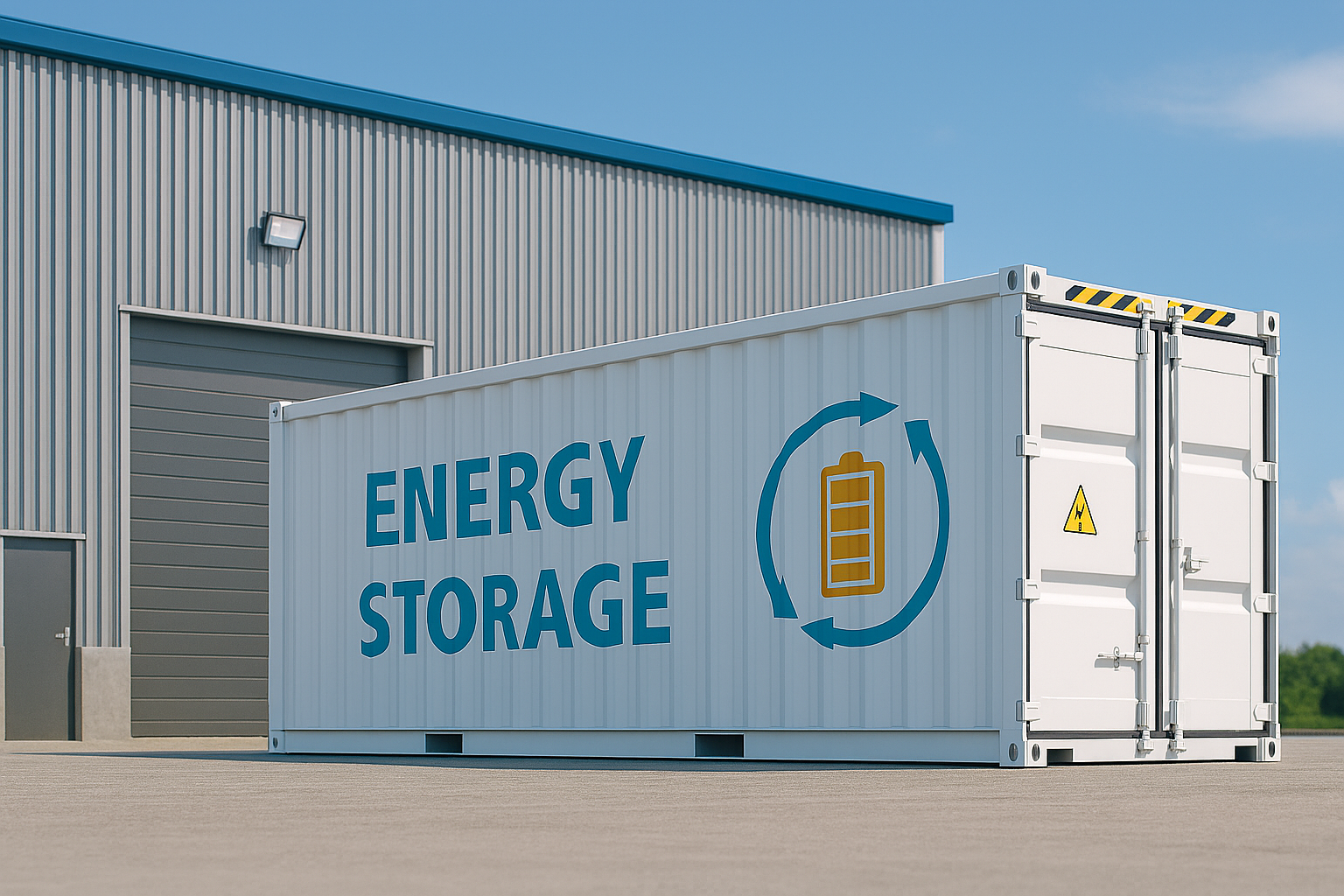

Utility units with 500kWhr, 1MWhr, 2, 4.2MWhr and shortly 10MWhr all in standard containers of 10ft, 20ft and 40ft. Having all necessary equipment in the one container.
Delivery Times: Small units (8-48kWhr) and US market: 2-4 weeks, All other units 2-4 months max.
Case studies: Available
Comments:
Energy density now 460 Whr/kg. Expected to increase shortly
The Graphene is synthetically produced. No mining or child labor involved.
Life Cycle: With the 500,000+ life cycles with negligible degradation a 20 year warranty is offered. Comparing this to typical Li-Ion life cycles of about 6,000 cycles (which can only be cycled 1x / day otherwise the warranty could be voided) our products last at least twice as long. Li-Ion has to be exchanged every 10 or so years so the real ROI is doubled with our products. Or thinking about it the other way the original CAPEX is less than half. Considering OPEX: With our product there is absolutely little maintenance. No service contracts. A well known Li-Ion battery producer charges exorbitant annual service fees (whether you like it or not) that greatly increase the overall lifetime cost of ownership, i.e. forced increased OPEX.
Cycles per day. Typical Li-Ion can only be cycled 1x / day. Otherwise the warranty could be voided (read the small print).
Thermal: There is really nothing that would cause any thermal runaway either by charging and discharging. That means no fires. This means closer spacing possible = small footprint and also means lower insurance rates. Peace of mind with local residents and business owners.
Response times: Nanoseconds – Li-Ion can’t touch that.
Operating Temp range: From a desert to a snow capped mountain if the ambient temperature is within this range -30°C (-22°F) to 60°C (140°F) it works and works without any HVAC needed.
Charging rates: If for example one only has a small solar window to charge, or the window to charge via the grid at night is very short then a higher charge rate can be specified. These higher charge rates do not degrade the ESS though!
CAPEX: Considering the much longer lifetime of EES, the CAPEX is considerably lower than that of Li-Ion for example.
Delivery times: As I understand, the typical delivery time for a Utility scale Li-Ion unit is 12-18 months. We have 2-4 months max.
All of the products do NOT come from China. Rather originate in the UAE. For the US market the smaller units 8-48kWhr, are Made in USA.
InnoWaCon LLC offers the following innovative waste conversion solution:
Carbotura is committed to deploying our capital into creating Waste to Circular Manufacturing facilities, creating high-paying manufacturing jobs, substantial economic impacts, and offering 100% recycling, elimination of landfills, zero emissions, and the creation of high-paying manufacturing jobs improving overall community value and quality of life.
Sustainability
Job Creation, Positive Economic & Environmental Impacts, and transform
Waste Management to Sustainable Circularity
Support
Transform landfills and support environmental sustainability through efficient waste to circular manufacturing solutions.
Simplify
Streamline your communities waste management practices with a waste supply agreement, simplifying the process for communities.
Create
Generate high-paying manufacturing jobs in local communities, contributing to economic growth and stability.
Align
Partner with communities focused on sustainable development, aligning with their goals and values for a greener future.
Waste to Manufacturing Regenesis offers environmental support, job creation, and simplified waste management. Aligned with community goals for sustainability. And, can be Zero-cost. Think of it as an endless virtual landfill.
Exogenesis™: Reduces Environmental Impact by Transforming Existing Landfills into Resource Mines
Exogenesis™ is a revolutionary process that mines landfills, extracts valuable materials, and contributes to significant environmental preservation. By transforming existing landfills into resource mines, we're reshaping waste management and sustainability efforts.
Revolutionary process that reshapes waste management efforts effectively and efficiently
Extracts valuable materials from landfills to contribute to environmental preservation
Transforms existing landfills into sustainable resource mines for sustainability
Pregenesis™: Preparing Waste for a New Life
Pregenesis™ takes center stage. This critical step involves the shredding, baling, wrapping, and stabilizing of Municipal Solid Waste (MSW). By preparing waste materials through these processes, we ensure they are primed for further refinement and recovery through our circular manufacturing approach. We halt all GHG Emissions which can be 3-4 pounds per day per ton if not stabilized.
Innovative manufacturing process that converts waste into valuable nanomaterial products effectively and efficiently
Creates sustainable products and resources from stabilized manufacturing units
Through WtCM witness the transformation of waste into valuable materials

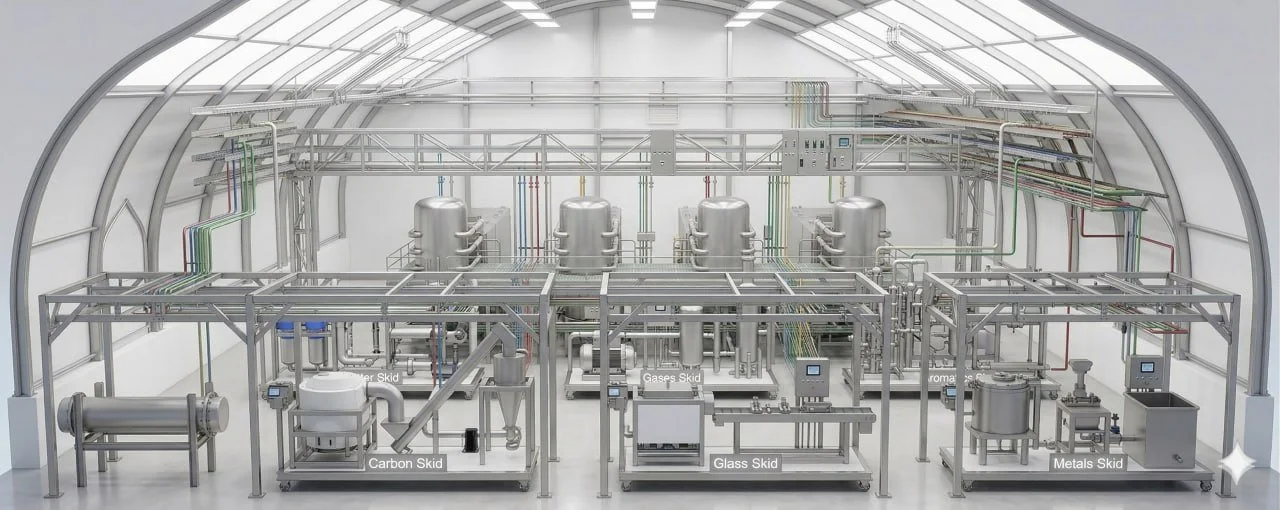

Regenesis™: Waste Transformation at its Finest
Regenesis™ is the pinnacle of waste transformation efforts, recovering materials at the molecular level for reintegration into manufacturing processes. It diverts waste from landfills, reduces raw material needs, and fosters a sustainable manufacturing cycle.
Diverts waste from landfills and reduces environmental impact
Reduces the need for virgin raw materials in manufacturing
Cutting-edge technology for efficient waste repurposing
Our system can handle any type of waste, other than radioactive waste and munitions.
100% Circular, 100% Diversion from Landfills, 100% Recycling
With
Zero Emissions, Zero Land filling, Zero Cost
We divert 100% of the waste from landfills and recycle 100% of the materials.
Ability to size facility footprint per project.
Carbotura provides all the capital, operations, and maintenance for the duration of the contract.
·No capital requirement from clients
Up to 100% rebate available on recycling fees, for Zero Cost
Climate credits are attributed to the client. More here.
Sound environmental as well as regulatory aspects of each individual project are paramount to their success and acceptance by the community in which they are located. This helps provide well paying jobs and security for all involved well into the future.
